Simple operation

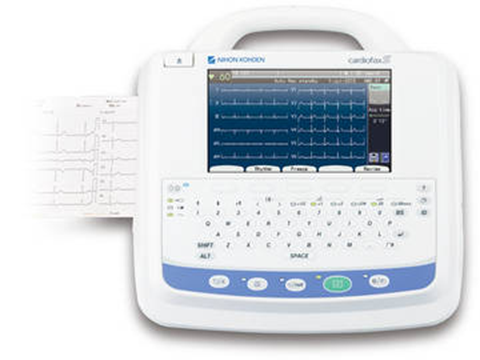

The 4.8-inch tiltable LCD backlight monitors allow for seamless viewing of 12 distinct ECG leads
The LCD display simultaneously displays 12 easy-to-observe ECG leads
ECAPS 12C analysis program for 12 leads and an analysis with 200 pathologies and 5 types of analytical evaluation.
SPECIFICATIONS:
Electrocardiogram:
- Resistor: ≥ 50MΩ (at 10Hz)
- Offset Voltage: ≥ ± 550mV
- Circumference: Is isolated and protected to avoid electrocardiographic shock
- Noise filter coefficient:> 105dB
- Input current: <0.05μA
- Sensitivity: 10mm / mv ± 2%
- Internal noise: ≤20μVp-p
- Interference between channels: ≤ -40dB
- Frequency response: with 10Hz 0.05-150Hz (+ 0.4dB / -3dB). 150 Hz (≥71%, high filtration
frequency: 150Hz)
- Sampling rate: 8000 samples / second
Signal Processing:
- Sampling rate: 500 samples / second, 1.25μv / LSB
- Minimum signal response: 20μVp-p
Electromechanical Noise Filter: 25/35 Hz
- High frequency filter: 75, 100, 150 Hz
- Noise filter: 50 / 60Hz
- Basic anti-drift filter: Weak: -20dB (0.1Hz), Power: -34dB (0.1Hz)
- Row time: ≥ 3.2s
- Sensitivity: 5, 10, 20mm / mV
Display:
- Screen size: 4.8 inches
- Type: LCD backlight monochrome
- Resolution: 320 x 240 dots
- Display parameters: waveform, patient information, set recording mode, active code, heart rate, QRS complex, error, electrode contact, interference
Write the:
- Printing handling: Thermal print head.
- Printing density: 200dpi
- Number of channels: 1, 2, or 3
- Paper speed: 25, 50 mm / s
- Scan line sensitivity: 1ms
- Recording parameters: waveform, program type, date and time, paper speed, sensitivity, direction
filter, patient information, event mark, electrode slide, interference
- Paper size: 63 mm wide, 30 m long in rolls
- Mechanical noise: ≤ 48 dB at paper speed of 25 mm / s
Electrocardiography:
- Name of program: ECAPS 12C
- patient's age: 3 to adults
- Items for ECG results: Nearly 200
- Section of results analysis: 5
